EBF-S

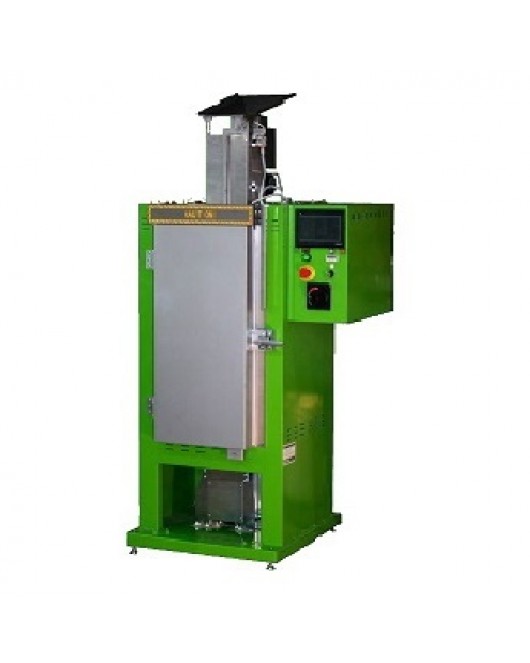

MODEL EBF-ST2 ROTATING BURNOUT FURNACE
・Maximum operating temperature：950℃

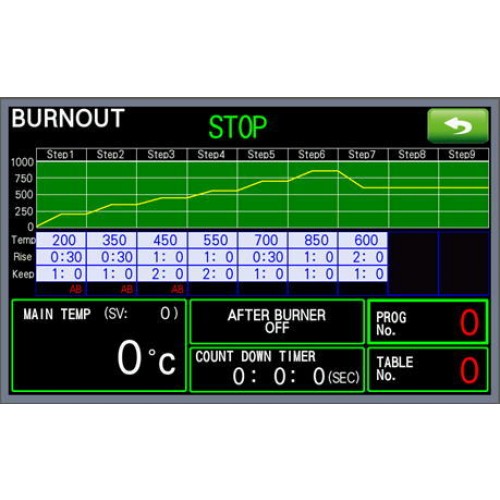

・Easy operation with touch panel
・Minimization of Pollution and Odor Caused by Smo
・Flask（φ100）13qty
|
Power supply |
AC 220 V±10%, single phase |
|
Power consumption |
6 KVA |
|
Temperature setting range |
0℃～950℃ |
|
Furnace temperature control accuracy |
1℃ /（2°F） |
|
Rotational position of rotary tables |
position 1～18 |
|
Operation steps |
Max 12steps |
|
Number of memories |
20 memories |
|
Maximum height of mold (flask) |
230ｍｍ |
|
Number of molds (flasks) that can be set up |
φ100－13 ／ φ89－15 ／ φ76－19 |
|
External dimension (including
the afterburner) |
895（W）×710（D）×1922（H）mm |
|
Weight of main body |
about220Kg |
EBF - ST2 ROTATING BURNOUT FURNACE
- Product Code: EBF - ST2 ROTATING BURNOUT FURNACE
