DRM F100R Rolling Mill Features & Benefits

• ‘F100’ Designed for rolling flat sheet metal up to 100mm
• ‘R’ 4-to-1 Reduction Gearbox
• Maximum Sheet Thickness of 5.5mm

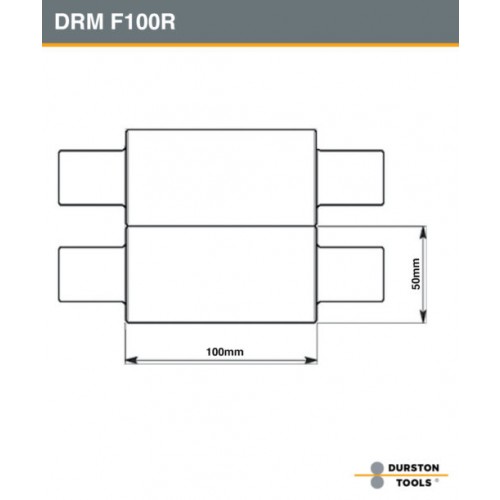

• Roll Diameter 50mm
• Roll Width 100mm

  DESCRIPTION

  The Durston DRM F100R Rolling Mill features our 4-to-1 Reduction Self Lubricating Gearbox giving maximum efficiency when rolling materials up to 5.5mm thick, features a flat rolling width of 100mm designed specifically for rolling flat sheet metals.

  Adjust this Rolling Mill with ease using the top mounted wheel, calibrated to give precise accuracy, as with all Durston Rolling Mills in the DRM Range, the body is solid cast iron giving ultimate strength, which combined with RC64 induction hardened rolls ensures a lifetime of rolling with professional results.

  ADDITIONAL INFORMATION

  WEIGHT	30.3 kg
  PRODUCT WEIGHT (KG)	24.4KG
  PRODUCT LENGTH (MM)	360
  PRODUCT WIDTH (MM)	200
  PRODUCT HEIGHT (MM)	320
  GEARBOX	4-to-1 gearbox
  MAX. SHEET THICKNESS (MM)	5.5
  ROLLER TYPE	Flat
  ROLLER DIAMETER (MM)	50
  ROLLER LENGTH (MM)	100
  SIDE EXTENSIONS	None
