DRM C130R Combination Rolling Mill Features & Benefits

• ‘C130’ Combination Rolling Mill
• ‘R’ 5-to-1 Reduction Gearbox
• 11 Wire Rolling Grooves 8mm to 1mm
• Maximum Sheet Thickness of 6mm

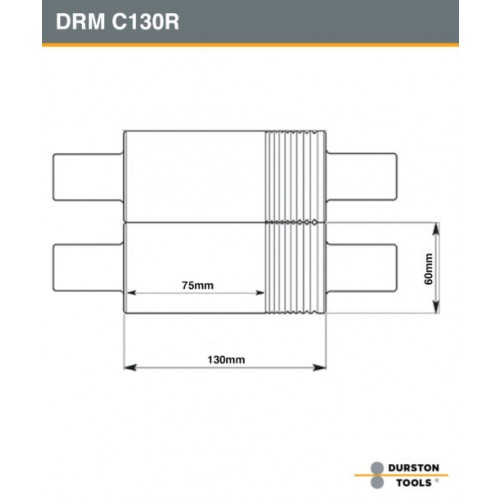

• Roll Diameter 60mm
• Roll Width 130mm (75mm / 55mm)

  DESCRIPTION

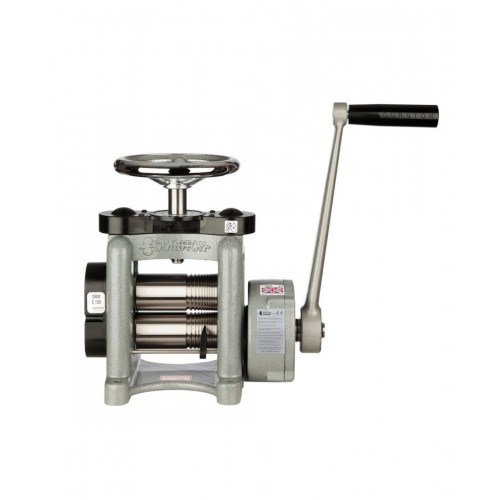

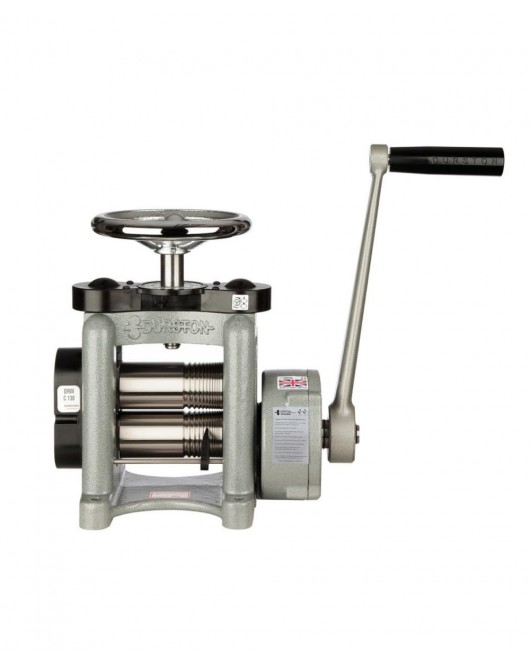

  The Durston DRM C130R Rolling Mill features our 5-to-1 Self Lubricating Gearbox giving maximum efficiency when rolling materials up to 6mm or wire up to 8mm, the 130mm Precision Hardened Rolls have 11 Square Rolling Grooves ranging from 8mm to 1mm in size and a 75mm Flat Rolling area (total roll width 130mm)

  Adjust this Rolling Mill with ease using the top mounted wheel, calibrated to give precise accuracy, as with all Durston Rolling Mills in the DRM Range, the body is solid cast iron giving ultimate strength, which combined with RC64 induction hardened rolls ensures a lifetime of rolling with professional results.

  The DRM C130R is a Combination Rolling Mill designed for flat metals and wire. More variations are available, please browse the full DRM Rolling Mill Range

  ADDITIONAL INFORMATION

  WEIGHT	46 kg
  PRODUCT WEIGHT (KG)	44
  PRODUCT LENGTH (MM)	410
  PRODUCT WIDTH (MM)	220
  PRODUCT HEIGHT (MM)	365
  GEARBOX	5-to-1 gearbox
  NUMBER OF GROOVES	11
  MAX. SHEET THICKNESS (MM)	6
  ROLLER TYPE	Combination
  ROLLER DIAMETER (MM)	60
  ROLLER LENGTH (MM)	130
  SIDE EXTENSIONS	None
  MAX. WIRE CAPACITY (MM)	8mm
