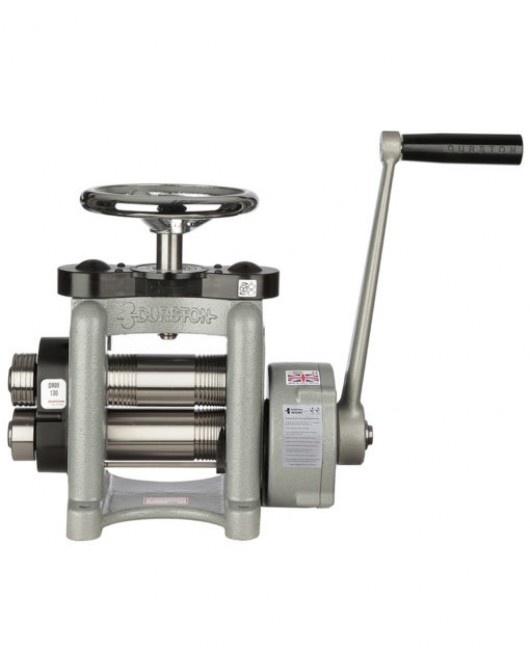

DRM ROMA C130RE
DRM ROMA C130RE Rolling Mill Features & Benefits
- ‘ROMA C130’ Combination Rolling Mill with half round and square grooves on the main roll.
- ‘R’ 5-to-1 Reduction Gearbox
- ‘E’ Side Extension with 4 Half Round Grooves (4 to 1.5mm)
- 7 Half round grooves (Main roll)
- 9 Square Wire Rolling Grooves (Main Roll)
- 50mm Flat rolling area
- Roll Diameter 60mm

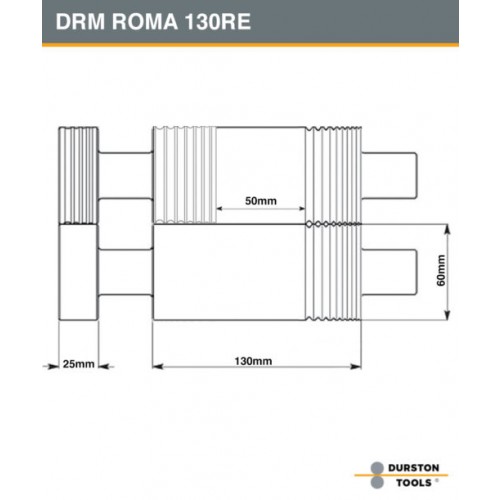

- Roll Width 130mm (see diagram)
DESCRIPTION
The Durston DRM ROMA C130RE Rolling Mill, this combination Rolling Mill has 130mm width rolls with a 50mm flat rolling area, half round and square profiles.
Also included, side extension with 4 shallow half round profiles, 4mm x 1.25mm, 3mm x 1mm, 2mm x 0.75mm, and 1.5mm x 0.5mm giving even more flexibility for professional Jewellery Makers.
Features our 5-to-1 Self Lubricating Gearbox giving maximum efficiency when rolling flat materials up to 6mm or wire up to 8mm, the 130mm Precision Hardened Rolls have 9 Square Rolling Grooves ranging from 8mm to 1mm in size, also 7 half round grooves and a 50mm Flat Rolling area (total roll width 130mm)
Adjust this Rolling Mill with ease using the top mounted wheel, calibrated to give precise accuracy, as with all Durston Rolling Mills in the DRM Range, the body is solid cast iron giving ultimate strength, which combined with RC64 induction hardened rolls ensures a lifetime of rolling with professional results.
The DRM C130RE is a Combination Rolling Mill designed for flat metals, wire and and half round wire. More variations are available, please browse the full DRM Rolling Mill Range
ADDITIONAL INFORMATION
WEIGHT 47.8 kg PRODUCT WEIGHT (KG) 45.3KG
PRODUCT LENGTH (MM) 410
PRODUCT WIDTH (MM) 220
PRODUCT HEIGHT (MM) 365
GEARBOX NUMBER OF GROOVES 7 x Half Round, 9 x Square
MAX. SHEET THICKNESS (MM) ROLLER TYPE ROLLER DIAMETER (MM) 60
ROLLER LENGTH (MM) SIDE EXTENSIONS 4, 3, 2, 1.5mm
MAX. WIRE CAPACITY (MM)
