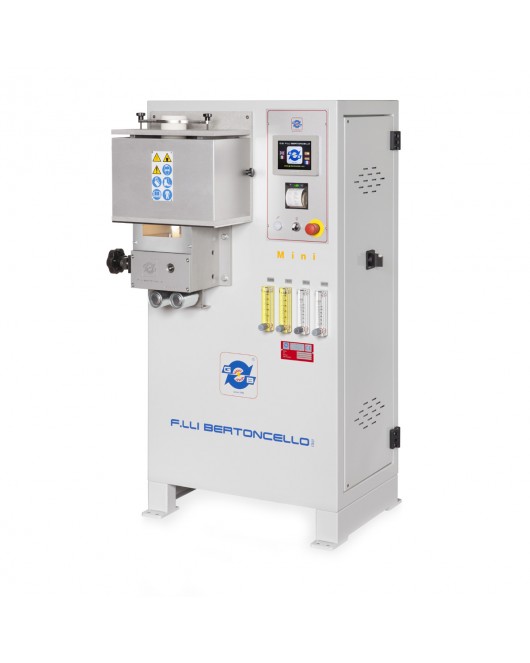

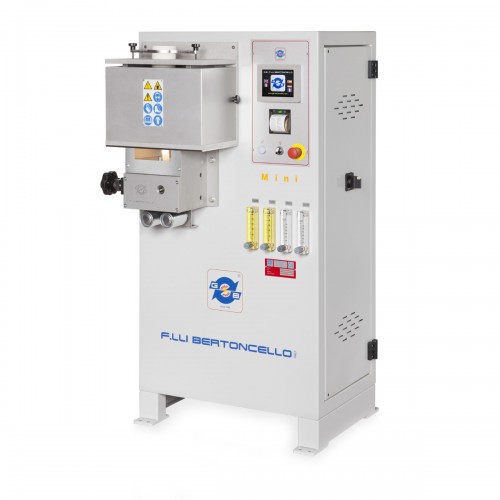

MINI 3:

Vertical continuous casting induction furnaces for production in wire, plate and tube in precious alloys.

Highlights:

l   Perfect homogeneity of the alloys thanks to our Pulse Mixing System.

l   Protection of the melting chamber by aluminum casing easily and quickly removable to change the consumables.

l   Crucible, die and thermocouples quick change for short set-up time.

l   Double cooling system of the die.

l   Pulling system with two rollers, stepper motor, manual closing and opening of the rollers.

l   Quick melting and high speed withdrawal of the profiles.

l   New medium frequency generators.

l   Silent working plant.

l   Control of the working parameters by PLC and touch screen video, self - diagnosing and possible alarms with buzzer.

l   Deoxidation chamber of the profile.
